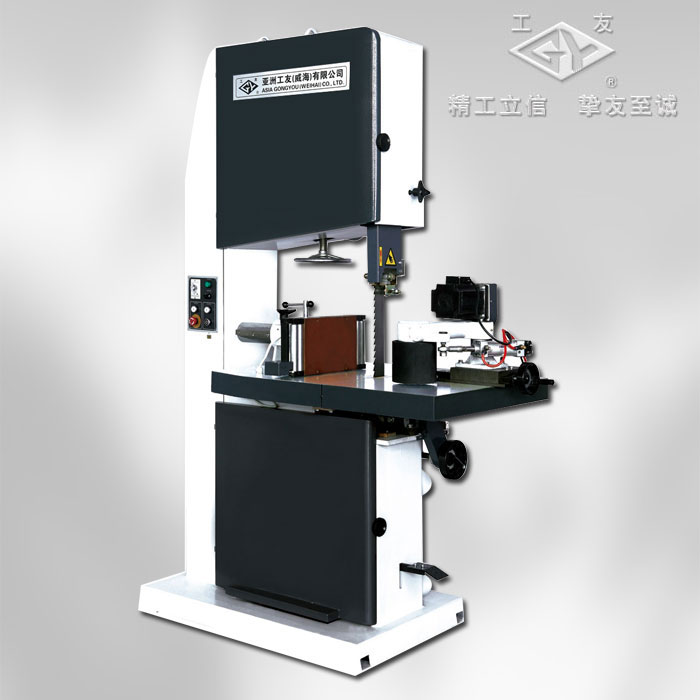

| Technical Specification | Unit | MJ397F |
| Saw wheel dia. | mm | ?700 |
| Maximum processing width (from the backing plate to the saw blade) | mm | 220 |
| Maximum processing throughput | mm | 450 |
| Table tilt angle | 0-20° | |
|
Deep throat |
mm | 670 |
|
Saw blade |
mm | 0.9* |
| Saw wheel speed | r/min | 750 |
| Main motor | kW | 7.5 |
| Feed motor | kW | 0.9*75*5400（Point alloy） |
| Feeding speed | m/min | 0.1-5.8 |
| Overall dimensions | mm | 1460×830×2550 |
|
Net.weight |
kg |
900 |
